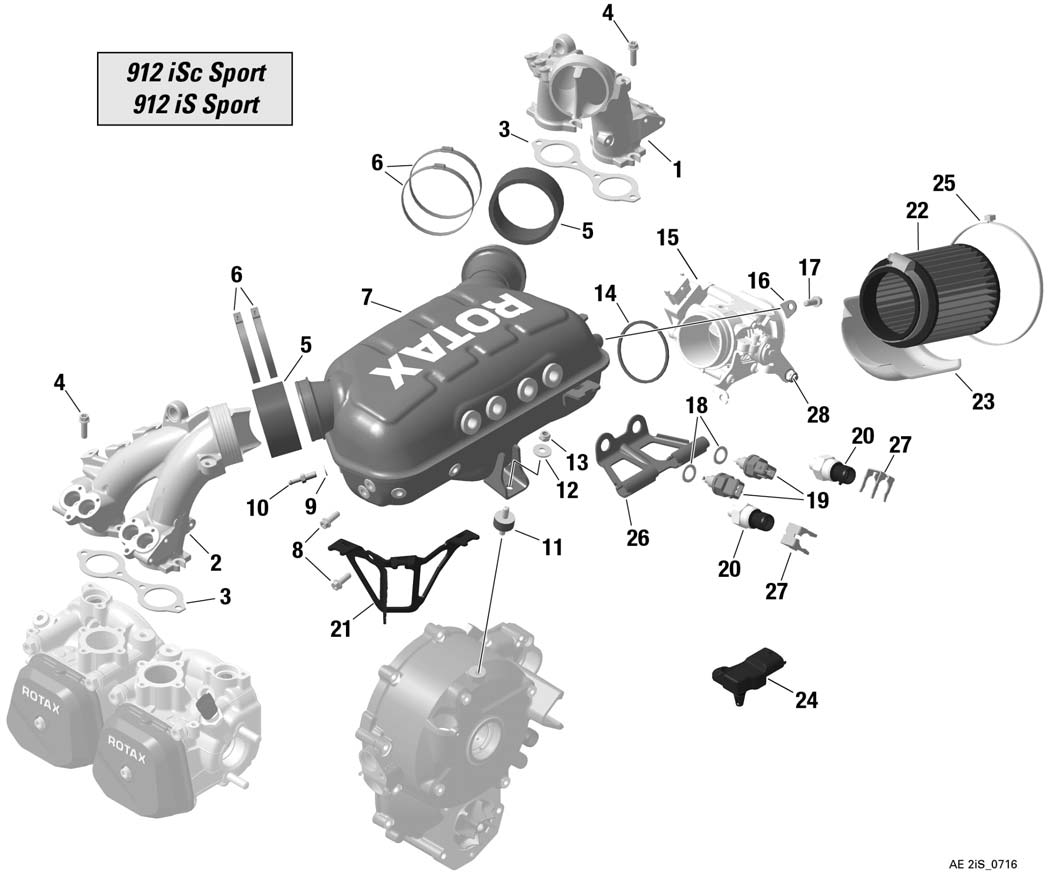

fig. 73-10-00-2
INTAKE MANIFOLD, AIRBOX, THROTTLE BODY SOCKET 912 iSc/iS Sport For
Click on Number to order Part
Your settings : Currency: US Dollars |
Parts Type : Non Certified Parts
Click here to change Settings
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 667403 | 1 | Call for Price | + | |
| 2 | 667406 | Intake Manifold 2/4 | 1 | Call for Price | + |
| 3 | 850091 | ISOLATING FLANGE | 2 | Call for Price | + |
| 4 | 440207 | HEX./TORX-FLANGE SCREW M6X20-SW8/T30 | 8 | Call for Price | + |
| 5 | 460421 | CONNECTING SOCKET | 2 | Call for Price | + |
| 6 | 953093 | 1-EAR-CLAMP 66,3-69,5 MM | 4 | Call for Price | + |
| 7 | 667411 | AIRBOX | 1 | Call for Price | + |
| 8 | 440164 | HEX./TORX-FLANGE SCREW M6X16-SW8/T30 MK | 4 | Call for Price | + |
| 9 | 230415 | GASKET RING A 6X10 | 1d | Call for Price | + |
| 10 | 840672 | HOSE NIPPLE M6 MK | 1d | Call for Price | + |
| 11 | 860700 | RUBBER 20X10XM6 | 1 | Call for Price | + |
| 12 | 827968 | WASHER 6,4 DIN 9021 | 1 | Call for Price | + |
| 13 | 842042 | LOCK NUT M6 | 1 | Call for Price | + |
| 14 | 850020 | RUBBER RING | 1 | Call for Price | + |
| 15 | 685056 | THROTTLE BODY SOCKET ASSY. | 1 | Call for Price | + |
| 16 | 953020 | SEPARATING PLATE | 3 | Call for Price | + |
| 17 | 440147 | Hex./torx-flange Screw M6x12-sw8/t30 | 3 | Call for Price | + |
| 18 | 250015 | SEALING RING A12X18 DIN 7603 | 2 | Call for Price | + |
| 19 | 222421 | TEMPERATURE SENSOR | 2 | Call for Price | + |
| 20 | 664364 | PRESSURE SENSOR 2,0 | 2 | Call for Price | + |
| 21 | 951562 | Connector Bracket | 1 | Call for Price | + |
| 22 | 825751 | 1b | Call for Price | + | |
| 23 | 975100 | HEAT SHIELD | 1 | Call for Price | + |
| 24 | 874654 | PRESSURE-/TEMP. SENSOR | 1c | Call for Price | + |
| 25 | 951500 | CLAMP 100MM | 1 | Call for Price | + |
| 26 | 651780 | CONNECTOR BRACKET | 1 | Call for Price | + |
| 27 | 638140 | CLAMP | 2 | Call for Price | + |
| 28 | 440000 | FIXING SCREW ASSY. | 1a | Call for Price | + |
