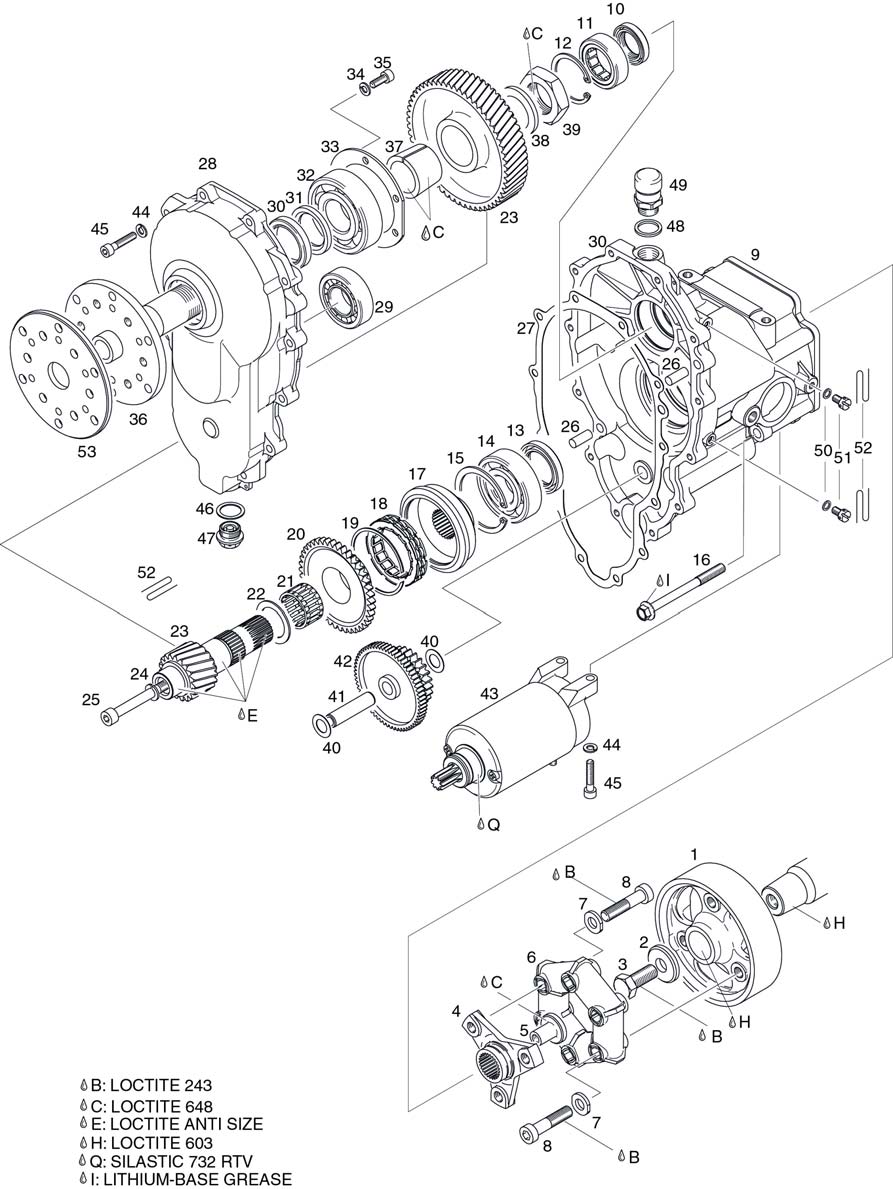

fig. 72-10-00-3

REDUCTION GEARBOX “E”: I=2.62, I=3.00, I=3.47 OR I=4.00 For ROTAX 912 A/F

Click on Number to order Part

Click here to see Your List
Your settings : Currency: US Dollars | Parts Type : Certified Parts
Click here to change Settings
Fig. Part Number Description Qty Unit/Price Add to Cart
1 958981 FLY WHEEL Call for Price +
2 827788 WASHER 13/34/5 Call for Price +
3 841652 HEX. SCREW 1/2-20UNFx1 3/16 Call for Price +
4 958972 Call for Price +
5 842661 NUT M8 Call for Price +
6 958964 HARDY DISC, 75 SHORE HARDNESS Call for Price +
7 944120 WASHER Call for Price +
8 841820 ALLEN SCREW M10 X 45 Call for Price +
9 810351 GEARBOX HOUSING Call for Price +
10 930675 OIL SEAL 25X38X7 Call for Price +
11 232287 ROLLER BEARING 26,5-47-14 Call for Price +
12 945690 RETAINING RING 47 X 1.75 USD 2.73 +
13 950084 OIL SEAL M32x47x7 Call for Price +
14 932820 BALL BEARING 6305 C3 / 25-62-17 Call for Price +
15 445070 SNAP RING Call for Price +
16 440367 COLLAR HEX SCREW M8X90 A/F 11 Call for Price +
17 852430 SPRAG CLUTCH HOUSING Call for Price +
18 259077 SPRAG CLUTCH 45,665X62,332X13 Call for Price +
19 245620 SNAPRING 62 Call for Price +
20 834280 FREE WHEEL GEAR 42 T Call for Price +
21 832410 NEEDLE CAGE K 28x34x20H Call for Price +
22 427236 THRUST WASHER 28,25/39,8/1,5 Call for Price +
23- 886751 GEAR SET E 2.62:1 Call for Price +
23- 886753 GEAR SET E 3.00:1 Call for Price +
23- 886755 GEAR SET E 3.47:1 Call for Price +
23- 886757 GEAR SET E 4.00:1 Call for Price +
24 845310 LOCK WASHER VHZ M8 USD 3.36 +
25 840062 HEX. COLLAR SCREW M8X80-SW10 USD 7.76 +
26 929940 STRAIGHT PIN 8 X 20 Call for Price +
27 950215 GASKET, GEAR BOX E Call for Price +
28 810361 GEAR COVER Call for Price +
29 232244 BEARING-ZR NJ 205 ECJ Call for Price +
30 930715 OIL SEAL 35/47/7 Call for Price +
31 944111 DISTANCE RING 31/44/4,5 Call for Price +
32 932570 BALL BEARING 6306 C3 30X72X19 Call for Price +
33 944106 SHIM Call for Price +
34 445330 LOCK WASHER VHZ 6 Call for Price +
35 241237 ALLEN SCREW M6X16 DIN 912 USD 0.2 +
36 837186 PROPELLER SHAFT Call for Price +
37 847757 SPLITTED CONE SLEEVE 10 Call for Price +
38 926201 MASSIVE WASHER 30/44/5 Call for Price +
39 842579 HEX NUT M30 x 1.5 12MM LH USD 50.5 +
40 227450 THRUST WASHER 12.5/21.5/0.5 Call for Price +
41 837302 IDLE GEAR SHAFT Call for Price +
42 834290 IDLE GEAR 62/25 Z Call for Price +
43 685975 ELECTRIC STARTER ASSY. Call for Price +
44 945831 LOCK WASHER A6 DIN 128 USD 0.2 +
45 840887 ALLEN SCREW M6 x 30 USD 1.07 +
46 552280 GASKET RING FOR MAGNETIC DRAIN PLUG Call for Price +
47 840270 MAGNETIC PLUG M18X1.5 Call for Price +
48 931200 GASKET RING 18.2/22/2 Call for Price +
49 941115 SCREW M18x1.5 Call for Price +
50 230415 GASKET RING A 6X10 USD 0.2 +
51 841782 Call for Price +
52 297555 SAFETY WIRE 0,8 Call for Price +
53 944140 PROP COVER WASHER Call for Price +
